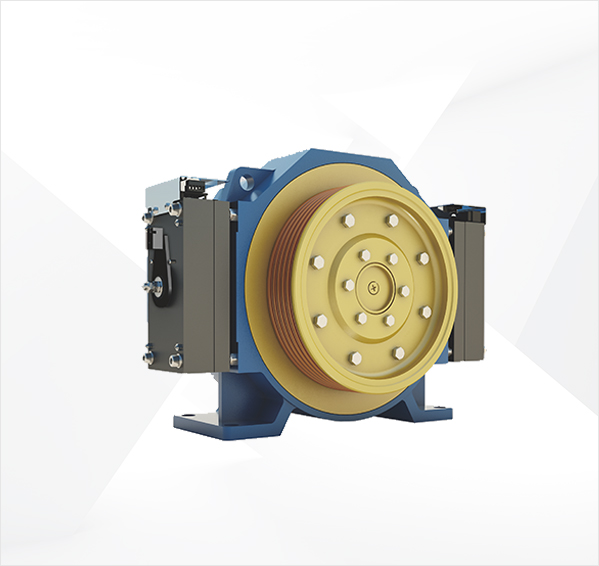

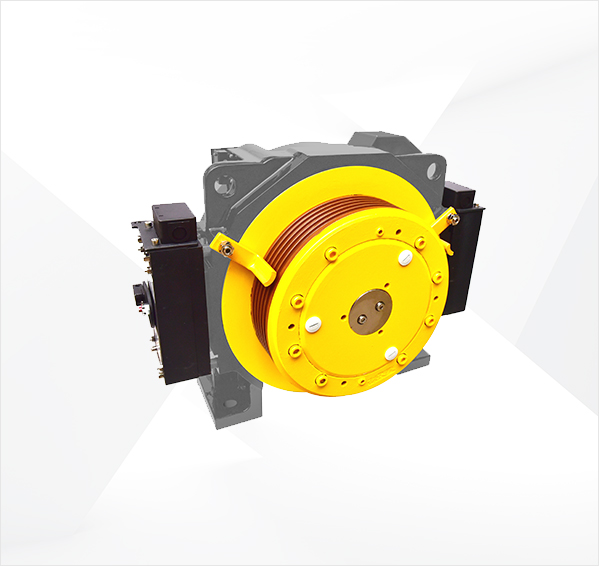

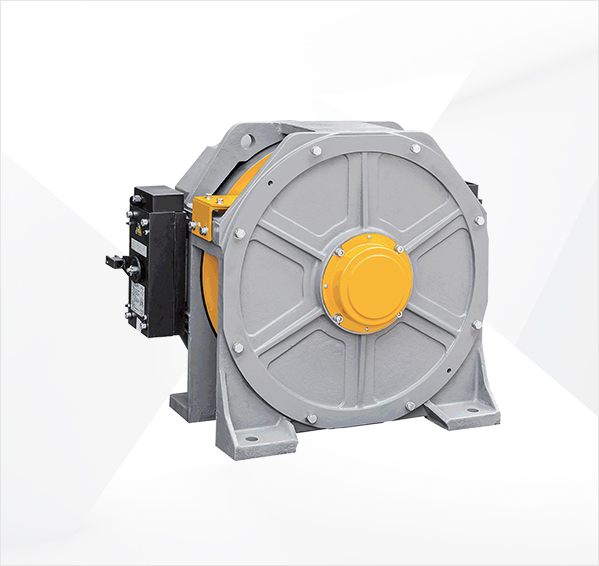

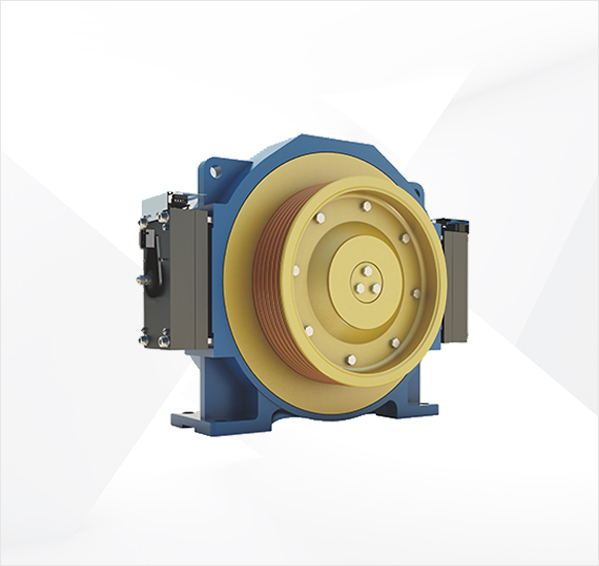

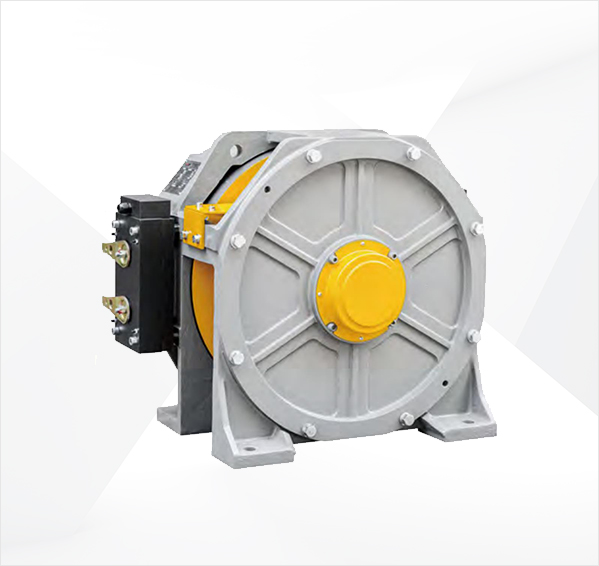

Gearless traction machine is a kind of traction machine in which the drive wheel is directly connected to the motor. Since the gearless elevator machine does not use a gearbox, this gearless elevator machine is called a gearless machine. The gearless traction machine directly uses the motor to drive the elevator to run, eliminating the gear reduction box. The efficiency of the lift gearless machine is higher, and the running performance of the elevator is better.
Voltage | 200V/380V | Machine Weight | 200kg |
Suspension | 2:1 | Package | Wooden box |
Brake method | Manual/Remote | Warranty | 1 year |
Brake | DC110V 2×0.84A (2×1.1A) | Production Capacity | 10000pcs/Month |
Load(kg) | Lift speed (m/s) | Height (m) | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade |
320 | 1 | ≤80 | Φ325 | 3xΦ8x12 | 2.5 | IP41 |
320 | 1.5 | ≤80 | Φ325 | 3xΦ8x12 | 3.7 | IP41 |
320 | 1.6 | ≤80 | Φ325 | 3xΦ8x12 | 4 | IP41 |
320 | 1.75 | ≤80 | Φ325 | 3xΦ8x12 | 4.3 | IP41 |
450 | 1 | ≤80 | Φ325 | 3xΦ8x12 | 3.3 | IP41 |
450 | 1.5 | ≤80 | Φ325 | 4xΦ8x12 | 4.9 | IP41 |
450 | 1.6 | ≤80 | Φ325 | 4xΦ8x12 | 5.2 | IP41 |
450 | 1.75 | ≤80 | Φ325 | 4xΦ8x12 | 5.7 | IP41 |
550 | 0.63 | ≤80 | Φ325 | 4xΦ8x12 | 2.2 | IP41 |
550 | 0.75 | ≤80 | Φ325 | 5xΦ8x12 | 2.7 | IP41 |
550 | 1 | ≤80 | Φ325 | 5xΦ8x12 | 3.6 | IP41 |
550 | 1.5 | ≤80 | Φ325 | 5xΦ8x12 | 5.4 | IP41 |
550 | 1.6 | ≤80 | Φ325 | 5xΦ8x12 | 5.7 | IP41 |
550 | 1.75 | ≤80 | Φ325 | 5xΦ8x12 | 6.3 | IP41 |
630 | 0.63 | ≤80 | Φ325 | 5xΦ8x12 | 2.5 | IP41 |
630 | 0.75 | ≤80 | Φ325 | 5xΦ8x12 | 3 | IP41 |
630 | 1 | ≤80 | Φ325 | 5xΦ8x12 | 4 | IP41 |
630 | 1.5 | ≤80 | Φ325 | 5xΦ8x12 | 6 | IP41 |
630 | 1.6 | ≤80 | Φ325 | 5xΦ8x12 | 6.4 | IP41 |
630 | 1.75 | ≤80 | Φ325 | 5xΦ8x12 | 7 | IP41 |
Voltage | 200V/380V | Machine Weight | 350kg |
Suspension | 2:1 | Package | Wooden box |
Brake method | Manual/Remote | Warranty | 1 year |
Brake | DC110V 2×0.88A | Production Capacity | 10000pcs/Month |
Load(kg) | Lift speed (m/s) | Height (m) | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade |
630 | 1 | ≤80 | Φ400 | 4xΦ10x16 | 4.2 | IP41 |
630 | 1.5 | ≤80 | Φ400 | 4xΦ10x16 | 6.3 | IP41 |
630 | 1.6 | ≤80 | Φ400 | 4xΦ10x16 | 6.7 | IP41 |
630 | 1.75 | ≤80 | Φ400 | 4xΦ10x16 | 7.3 | IP41 |
630 | 2 | ≤80 | Φ400 | 4xΦ10x16 | 8.4 | IP41 |
800 | 1 | ≤80 | Φ400 | 5xΦ10x16 | 5.3 | IP41 |
800 | 1.5 | ≤80 | Φ400 | 5xΦ10x16 | 8 | IP41 |
800 | 1.6 | ≤80 | Φ400 | 5xΦ10x16 | 8.5 | IP41 |
800 | 1.75 | ≤80 | Φ400 | 5xΦ10x16 | 9.3 | IP41 |
800 | 2 | ≤80 | Φ400 | 5xΦ10x16 | 10.7 | IP41 |
1000 | 1 | ≤80 | Φ400 | 5xΦ10x16 | 6.5 | IP41 |
1000 | 1.5 | ≤80 | Φ400 | 5xΦ10x16 | 9.8 | IP41 |
1000 | 1.6 | ≤80 | Φ400 | 5xΦ10x16 | 10.4 | IP41 |
1000 | 1.75 | ≤80 | Φ400 | 5xΦ10x16 | 11.4 | IP41 |
1000 | 2 | ≤80 | Φ400 | 5xΦ10x16 | 13.1 | IP41 |
1150 | 1 | ≤80 | Φ340 | 8xΦ8x12 | 7.6 | IP41 |
1150 | 1.5 | ≤80 | Φ340 | 8xΦ8x12 | 11.4 | IP41 |
1150 | 1.6 | ≤80 | Φ340 | 8xΦ8x12 | 12.3 | IP41 |
1150 | 1.75 | ≤80 | Φ340 | 8xΦ8x12 | 13.5 | IP41 |
1150 | 2 | ≤80 | Φ340 | 8xΦ8x12 | 15.3 | IP41 |
Voltage | 200V/380V | Machine Weight | 550kg |
Suspension | 2:1/1:1 | Package | Wooden box |
Brake method | Manual/Remote | Warranty | 1 year |
Brake | DC110V 2×2A | Production Capacity | 10000pcs/Month |
Load(kg) | Lift speed (m/s) | Height (m) | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade | Suspension |
800 | 1 | ≤120 | Φ485 | 8xΦ10x16 | 5.2 | IP41 | 1:01 |
800 | 1.5 | ≤120 | Φ485 | 8xΦ10x16 | 7.8 | IP41 | 1:01 |
800 | 1.6 | ≤120 | Φ485 | 8xΦ10x16 | 8.4 | IP41 | 1:01 |
800 | 1.75 | ≤120 | Φ485 | 8xΦ10x16 | 9.2 | IP41 | 1:01 |
800 | 2 | ≤120 | Φ485 | 8xΦ10x16 | 10.5 | IP41 | 1:01 |
800 | 2.5 | ≤120 | Φ485 | 8xΦ10x16 | 13.2 | IP41 | 1:01 |
1350 | 1 | ≤120 | Φ485 | 8xΦ10x16 | 8.9 | IP41 | 2:01 |
1350 | 1.5 | ≤120 | Φ485 | 8xΦ10x16 | 13.2 | IP41 | 2:01 |
1350 | 1.6 | ≤120 | Φ485 | 8xΦ10x16 | 14.1 | IP41 | 2:01 |
1350 | 1.75 | ≤120 | Φ485 | 8xΦ10x16 | 15.5 | IP41 | 2:01 |
1350 | 2 | ≤120 | Φ485 | 8xΦ10x16 | 17.7 | IP41 | 2:01 |
1350 | 2.5 | ≤120 | Φ485 | 8xΦ10x16 | 22.1 | IP41 | 2:01 |
1600 | 1 | ≤120 | Φ485 | 8xΦ10x16 | 10.5 | IP41 | 2:01 |
1600 | 1.5 | ≤120 | Φ485 | 8xΦ10x16 | 15.7 | IP41 | 2:01 |
1600 | 1.6 | ≤120 | Φ485 | 8xΦ10x16 | 16.8 | IP41 | 2:01 |
1600 | 1.75 | ≤120 | Φ485 | 8xΦ10x16 | 18.4 | IP41 | 2:01 |
1600 | 2 | ≤120 | Φ485 | 8xΦ10x16 | 21 | IP41 | 2:01 |
1600 | 2.5 | ≤120 | Φ485 | 8xΦ10x16 | 26.2 | IP41 | 2:01 |
Voltage | 200V/380V | Machine Weight | 450kg |
Suspension | 2:1/1:1 | Package | Wooden box |
Brake method | Manual/Remote | Warranty | 1 year |
Brake | DC110V 2×1.5A | Production Capacity | 10000pcs/Month |
Load(kg) | Lift speed (m/s) | Height (m) | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade | Suspension |
630 | 1 | ≤120 | Φ485 | 6xΦ10x16 | 4 | IP41 | 1:01 |
630 | 1.5 | ≤120 | Φ485 | 6xΦ10x16 | 6.1 | IP41 | 1:01 |
630 | 1.6 | ≤120 | Φ485 | 6xΦ10x16 | 6.5 | IP41 | 1:01 |
630 | 1.75 | ≤120 | Φ485 | 6xΦ10x16 | 7.2 | IP41 | 1:01 |
630 | 2 | ≤120 | Φ485 | 6xΦ10x16 | 8.2 | IP41 | 1:01 |
630 | 2.5 | ≤120 | Φ485 | 6xΦ10x16 | 10.3 | IP41 | 1:01 |
1000 | 1 | ≤120 | Φ485 | 6xΦ10x16 | 6.2 | IP41 | 2:01 |
1000 | 1.5 | ≤120 | Φ485 | 6xΦ10x16 | 9.3 | IP41 | 2:01 |
1000 | 1.6 | ≤120 | Φ485 | 6xΦ10x16 | 9.9 | IP41 | 2:01 |
1000 | 1.75 | ≤120 | Φ485 | 6xΦ10x16 | 10.8 | IP41 | 2:01 |
1000 | 2 | ≤120 | Φ485 | 6xΦ10x16 | 12.4 | IP41 | 2:01 |
1000 | 2.5 | ≤120 | Φ485 | 6xΦ10x16 | 15.5 | IP41 | 2:01 |
1150 | 1 | ≤120 | Φ485 | 6xΦ10x16 | 7.1 | IP41 | 2:01 |
1150 | 1.5 | ≤120 | Φ485 | 6xΦ10x16 | 10.6 | IP41 | 2:01 |
1150 | 1.6 | ≤120 | Φ485 | 6xΦ10x16 | 11.3 | IP41 | 2:01 |
1150 | 1.75 | ≤120 | Φ485 | 6xΦ10x16 | 12.4 | IP41 | 2:01 |
1150 | 2 | ≤120 | Φ485 | 6xΦ10x16 | 14.2 | IP41 | 2:01 |
1150 | 2.5 | ≤120 | Φ485 | 6xΦ10x16 | 17.7 | IP41 | 2:01 |
1250 | 1 | ≤120 | Φ485 | 6xΦ10x16 | 8.2 | IP41 | 2:01 |
1250 | 1.5 | ≤120 | Φ485 | 6xΦ10x16 | 12.2 | IP41 | 2:01 |
1250 | 1.6 | ≤120 | Φ485 | 6xΦ10x16 | 13.1 | IP41 | 2:01 |
1250 | 1.75 | ≤120 | Φ485 | 6xΦ10x16 | 14.3 | IP41 | 2:01 |
1250 | 2 | ≤120 | Φ485 | 6xΦ10x16 | 16.4 | IP41 | 2:01 |
1250 | 2.5 | ≤120 | Φ485 | 6xΦ10x16 | 20.4 | IP41 | 2:01 |
Voltage | 200V/380V | Machine Weight | 250kg |
Suspension | 2:1 | Package | Wooden box |
Brake method | Manual/Remote | Warranty | 1 year |
Brake | DC110V 2×1.3A | Production Capacity | 10000pcs/Month |
Load(kg) | Lift speed (m/s) | Height (m) | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade | Suspension |
320 | 0.5 | ≤80 | Φ320 | 3xΦ8x12 | 1.1 | IP41 | 2:01 |
320 | 0.63 | ≤80 | Φ320 | 3xΦ8x12 | 1.4 | IP41 | 2:01 |
320 | 1 | ≤80 | Φ320 | 3xΦ8x12 | 2.2 | IP41 | 2:01 |
320 | 1.5 | ≤80 | Φ320 | 3xΦ8x12 | 3.4 | IP41 | 2:01 |
450 | 2 | ≤80 | Φ485 | 4xΦ8x12 | 1.5 | IP41 | 2:01 |
450 | 2.5 | ≤80 | Φ485 | 4xΦ8x12 | 1.9 | IP41 | 2:01 |
450 | 1 | ≤80 | Φ485 | 4xΦ8x12 | 3 | IP41 | 2:01 |
450 | 1.5 | ≤80 | Φ485 | 4xΦ8x12 | 4.5 | IP41 | 2:01 |
450 | 1.75 | ≤80 | Φ485 | 4xΦ8x12 | 5.3 | IP41 | 2:01 |
630 | 0.5 | ≤80 | Φ485 | 5xΦ8x12 | 2.1 | IP41 | 2:01 |
630 | 0.63 | ≤80 | Φ485 | 5xΦ8x12 | 2.7 | IP41 | 2:01 |
630 | 1 | ≤80 | Φ485 | 5xΦ8x12 | 4.2 | IP41 | 2:01 |
630 | 1.5 | ≤80 | Φ485 | 5xΦ8x12 | 6.4 | IP41 | 2:01 |
630 | 1.6 | ≤80 | Φ485 | 5xΦ8x12 | 6.8 | IP41 | 2:01 |
630 | 1.75 | ≤80 | Φ485 | 5xΦ8x12 | 7.4 | IP41 | 2:01 |
Voltage | 200V/380V | Machine Weight | 350kg |
Suspension | 2:1 | Package | Wooden box |
Brake method | Manual/Remote | Warranty | 1 year |
Brake | DC110V 2×1.3A | Production Capacity | 10000pcs/Month |
Load(kg) | Lift speed (m/s) | Height (m) | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade | Suspension |
630 | 0.5 | ≤80 | Φ400 | 4xΦ10x15 | 2.2 | IP41 | 2:01 |
630 | 0.63 | ≤80 | Φ400 | 4xΦ10x15 | 2.7 | IP41 | 2:01 |
630 | 1 | ≤80 | Φ400 | 4xΦ10x15 | 4.3 | IP41 | 2:01 |
630 | 1.5 | ≤80 | Φ400 | 4xΦ10x15 | 6.4 | IP41 | 2:01 |
630 | 1.6 | ≤80 | Φ400 | 4xΦ10x15 | 6.9 | IP41 | 2:01 |
630 | 1.75 | ≤80 | Φ400 | 4xΦ10x15 | 7.5 | IP41 | 2:01 |
630 | 2 | ≤80 | Φ400 | 4xΦ10x15 | 8.6 | IP41 | 2:01 |
800 | 0.5 | ≤80 | Φ400 | 5xΦ10x15 | 2.7 | IP41 | 2:01 |
800 | 0.63 | ≤80 | Φ400 | 5xΦ10x15 | 3.4 | IP41 | 2:01 |
800 | 1 | ≤80 | Φ400 | 5xΦ10x15 | 5.4 | IP41 | 2:01 |
800 | 1.5 | ≤80 | Φ400 | 5xΦ10x15 | 8.1 | IP41 | 2:01 |
800 | 1.6 | ≤80 | Φ400 | 5xΦ10x15 | 8.7 | IP41 | 2:01 |
800 | 1.75 | ≤80 | Φ400 | 5xΦ10x15 | 9.4 | IP41 | 2:01 |
800 | 2 | ≤80 | Φ400 | 5xΦ10x15 | 10.8 | IP41 | 2:01 |
800 | 2.5 | ≤80 | Φ400 | 6xΦ10x15 | 13.5 | IP41 | 2:01 |
1000 | 0.5 | ≤80 | Φ400 | 5xΦ10x15 | 3.4 | IP41 | 2:01 |
1000 | 0.63 | ≤80 | Φ400 | 5xΦ10x15 | 4.2 | IP41 | 2:01 |
1000 | 1 | ≤80 | Φ400 | 5xΦ10x15 | 6.7 | IP41 | 2:01 |
1000 | 1.5 | ≤80 | Φ400 | 5xΦ10x15 | 10 | IP41 | 2:01 |
1000 | 1.6 | ≤80 | Φ400 | 5xΦ10x15 | 10.7 | IP41 | 2:01 |
1000 | 1.75 | ≤80 | Φ400 | 5xΦ10x15 | 11.7 | IP41 | 2:01 |
1000 | 2 | ≤80 | Φ400 | 5xΦ10x15 | 13.4 | IP41 | 2:01 |
1000 | 2.5 | ≤80 | Φ400 | 6xΦ10x15 | 16.8 | IP41 | 2:01 |
1150 | 0.5 | ≤80 | Φ400 | 5xΦ10x15 | 3.9 | IP41 | 2:01 |
1150 | 0.63 | ≤80 | Φ400 | 5xΦ10x15 | 4.9 | IP41 | 2:01 |
1150 | 1 | ≤80 | Φ400 | 5xΦ10x15 | 7.8 | IP41 | 2:01 |
1150 | 1.5 | ≤80 | Φ400 | 6xΦ10x15 | 11.7 | IP41 | 2:01 |
1150 | 1.6 | ≤80 | Φ400 | 6xΦ10x15 | 12.5 | IP41 | 2:01 |
1150 | 1.75 | ≤80 | Φ400 | 6xΦ10x15 | 13.6 | IP41 | 2:01 |
1150 | 2 | ≤80 | Φ400 | 6xΦ10x15 | 15.6 | IP41 | 2:01 |

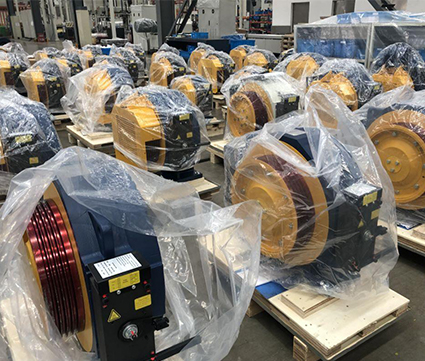

Before the logistics transportation, we will have multiple processes to inspect and package the gearless traction elevator motor to ensure that each product is delivered to customers with good quality.
