Iron Casting Deflector Sheave

The main function of the iron casting elevator traction sheave is to limit the freedom of movement of the car and the counterweight, so that the car and the counterweight can only move up and down along the guide rails. At present, the elevator traction sheave is widely used in passenger elevators, freight elevators, etc.

Basic Information of Iron Casting Deflector Sheave

Material	Cast iron	Accessories	U-bracket
Diameter	Φ240-640	Package	Wooden box
Axis	With	Warranty	1 year
Axis length	Can be customized	Production Capacity	10000pcs/Month

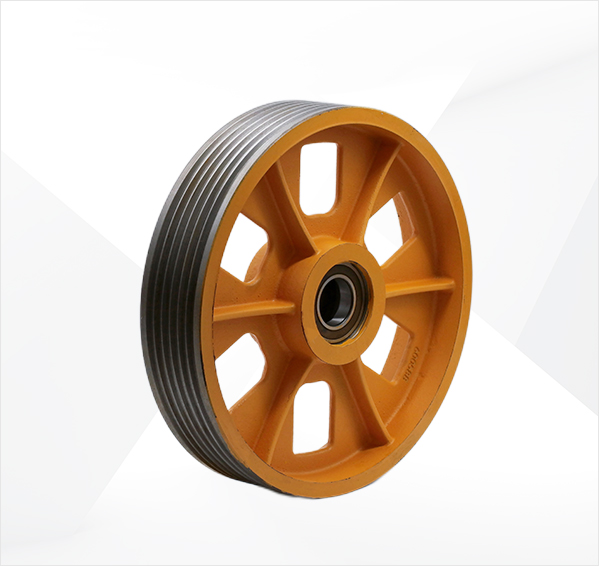

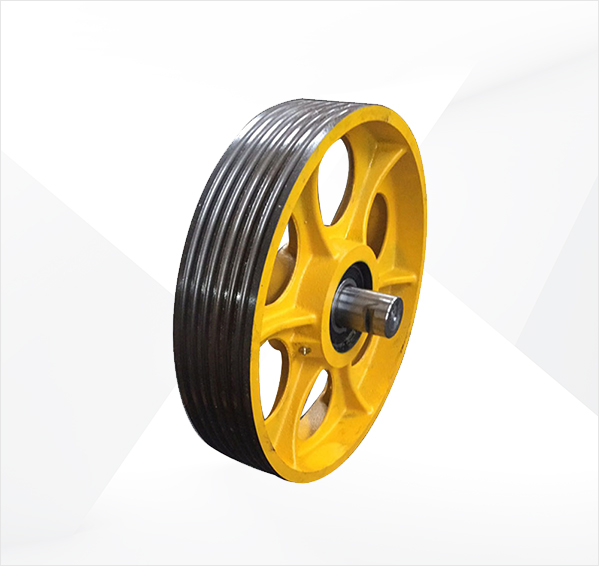

Casting Deflector Sheave Photos and Drawing

Iron Casting Deflector Sheave Specifications

Model	Dia.	Aperture	Slots	Rope(mm)	Slot pitch	Bearing	Rated Load

	D	E	N		P		Q
PDA04-240	Φ240	80	2	6.5	10	6206	≤450kg
		80	3			6208	≤800kg
		90	4			6210	≤800kg
		110	5			6212	≤1000kg
PDA04-320	Φ320	110	3	8	12	6212	≤630kg
					13
			4		12		≤800kg
					13
			5		12		≤1000kg
					13
		130	6		12	6312	≤1600kg
					13
		140	7		12	6216	≤1600kg
					13
			8		12
					13
PDA04-400	Φ400	140	7	10	15	6313	≤2000kg
				10	16
			8	8	12
				8	13
				10	15
				10	16
			9	8	12
				8	13
PDA04-480	Φ480	110	3	10	15	6212	≤800kg
				10	16
			4	8	12
				8	13
		130	4	10	15	6312	≤1000kg
				10	16
			5	8	12
				8	3
				10	15		≤1500kg
				10	16
			6	8	12
				8	13
		140	6	10	15	6313	≤2000kg
				10	16
			7	8	12
				8	13
PDA04-520	Φ520	130	3	13	20	6312	≤1000kg
			4	10	15
			4	10	16
			4	13	20		≤1300kg
			5	10	15
			5	10	16
			5	13	20		≤1600kg
			6	10	15
			6	10	16
		140	6	13	20	6313	≤2000kg
			7	10	15
			7	10	16
		150	6	13	20	6314	≤3000kg
			7	10	15
			7	10	16
PDA04-640	Φ640	160	5	16	25	6315	≤3000kg
			6	13	20
		170	6	16	25	6316	≤5000kg

Iron Casting Deflector Sheave Logistics

Before the logistics transportation, we will have multiple processes to inspect and package the products to ensure that each elevator traction sheave is delivered to customers with good quality.
