Oil buffer is a safety device designed to stop a descending car or counterweight beyond its normal limits and relieve the force of the elevator entering the pit in an emergency. Panda Elevator provides customers with a series of oil buffers according to different speeds and P+Q, and customization also available.
Name | Elevator Oil Buffer | MOQ | 1pc |
Rated Speed | ≤2.0m/s | Shipping | FCL/LCL |
P+Q | 300-5300kg | Package | Standard package |
Standard | EN81 | Warranty | 1 year |

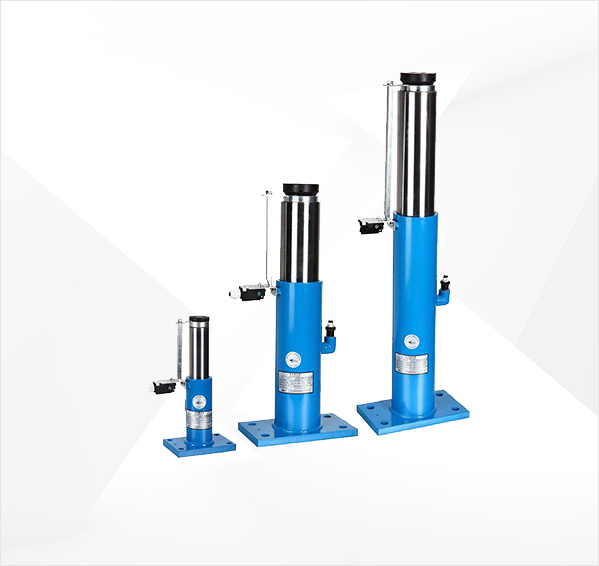

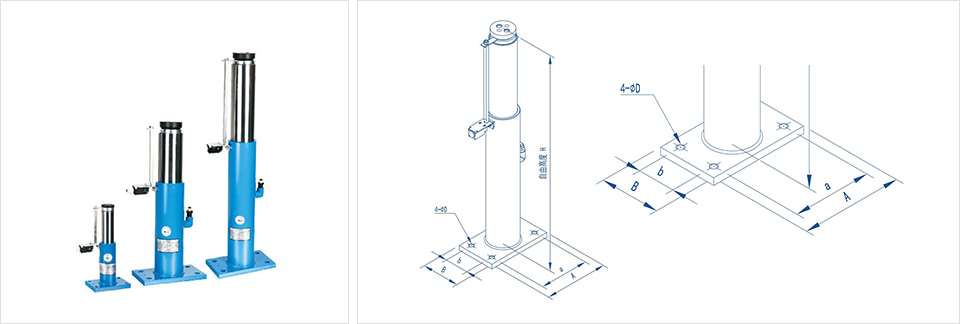

Model | Base size(A*B) | Locating hole(a*b) | Rated speed | P+Q | Stroke | H height |
(mm) | (mm) | (m/s) | (kg) | (mm) | (mm) | |
PD-OH-10 | 180x125 | 150x90xΦ14 | ≤1.0 | 300-2500 | 100 | 390 |
PD-OH-16 | 270x150 | 210x100xΦ18 | ≤1.6 | 700-5300 | 175 | 625 |
PD-OH-20 | 270x125 | 210x100xΦ18 | ≤2.0 | 1000-5300 | 290 | 917 |
Name | Elevator Oil Buffer | MOQ | 1pc |
Rated Speed | ≤1.75m/s | Shipping | FCL/LCL |
P+Q | 600-3000kg | Package | Standard package |
Standard | EN81 | Warranty | 1 year |

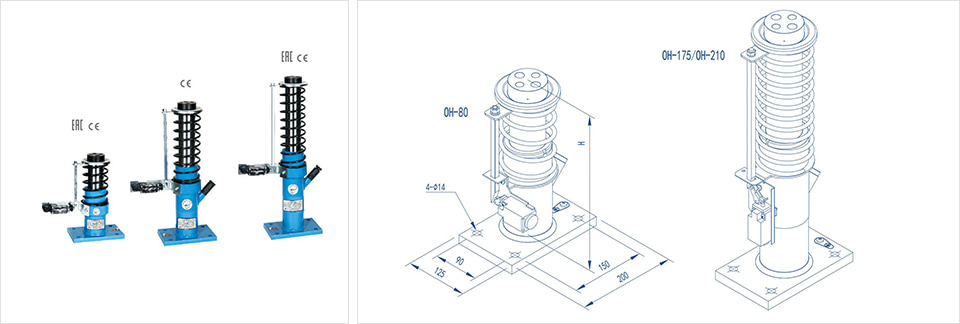

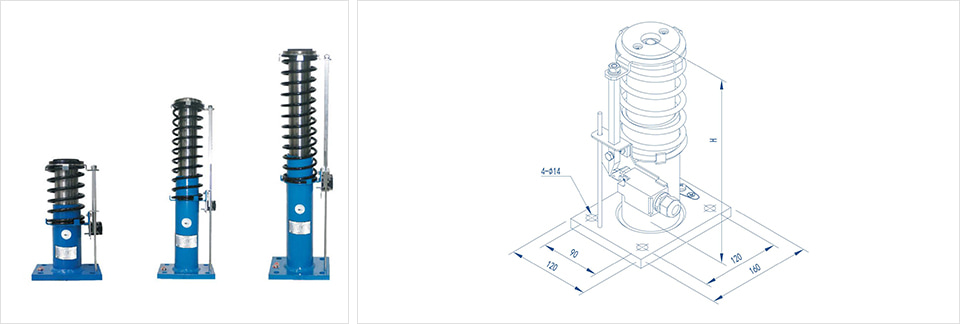

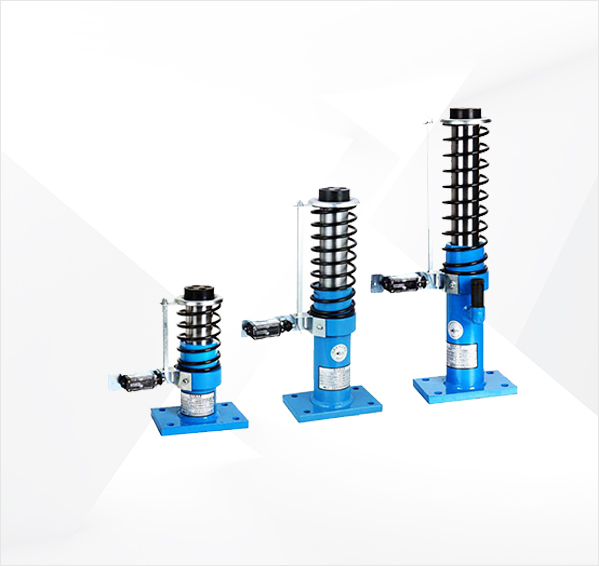

Model | Base size | Locating hole | Rated speed | P+Q | Stroke | H height |
(mm) | (mm) | (m/s) | (kg) | (mm) | (mm) | |
PD-OH-80 | 200x125 | 150x90xΦ14 | ≤1.0 | 600-3000 | 80 | 315 |
PD-OH-175 | 200x125 | 150x90xΦ14 | ≤1.6 | 600-3000 | 175 | 510 |
PD-OH-210 | 200x125 | 150x90xΦ14 | ≤1.75 | 600-3000 | 210 | 610 |
Name | Elevator Oil Buffer | MOQ | 1pc |
Rated Speed | ≤1.75m/s | Shipping | FCL/LCL |
P+Q | 600-3000kg | Package | Standard package |
Standard | EN81 | Warranty | 1 year |
Model | Base size | Locating hole | Rated speed | P+Q | Stroke | H height |
(mm) | (mm) | (m/s) | (kg) | (mm) | (mm) | |
PD-OH-80 | 160x120 | 120x90xΦ14 | ≤1.0 | 600-3000 | 80 | 282 |
PD-OH-175 | 160x120 | 120x90xΦ14 | ≤1.6 | 600-3000 | 175 | 510 |
PD-OH-210 | 160x120 | 120x90xΦ14 | ≤1.75 | 600-3000 | 210 | 592 |

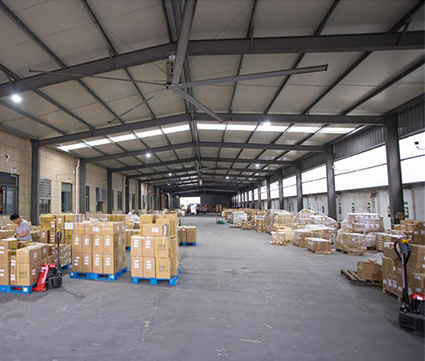

Before the logistics transportation, we will have multiple processes to inspect and package oil buffers for elevators to ensure that each elevator oil buffer is delivered to customers with good quality.
