| Model | Weight(kg/m) | Min bending diameter(mm) | Broken load(≥KN) | Max length(m) |
| Φ6 | 0.89±0.2 | 260 | 13 | 180 |
| Φ7 | 1.28±0.2 | 260 | 18 | 185 |
| Φ8 | 1.5±0.2 | 260 | 23.5 | 190 |
| Φ9 | 2.03±0.2 | 280 | 30 | 190 |
| Φ10 | 2.39±0.2 | 280 | 37 | 230 |
| Φ11 | 2.95±0.2 | 300 | 44.5 | 230 |
| Φ12 | 3.33±0.2 | 300 | 52 | 240 |
| Φ13 | 3.80±0.2 | 320 | 62.23 | 240 |
| Φ14 | 4.46±0.2 | 320 | 70 | 240 |
| Φ16 | 5.95±0.2 | 320 | 94.5 | 240 |

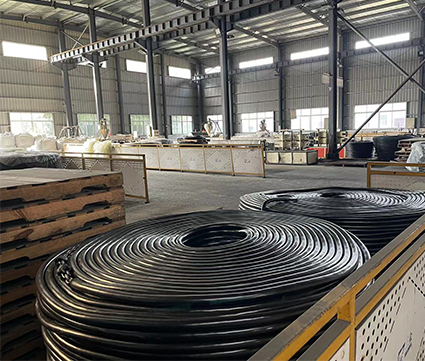

Before the logistics transportation, we will have multiple processes to inspect and package the products to ensure that each compensating chain used in elevator is delivered to customers with good quality.
